M-St 50 SSE

Female threaded hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)

MK 50 SSE

TW female coupler. Material: stainless steel with universally resistant PFA coating (red)

FF-St 80 SSE

Fixed flange hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)

Elaflon PTFE 50 with FFX 50 SSE/SS; PCS 25 with AMKC 25 SSE/SS

Universal hoses with PFA coated fixed flange and Camlock fittings. Spannfix / Spannloc stainless steel clamps.

AVKI 38 SSE

Camlock male adapter. Material: stainless steel with universally resistant PFA coating (red)

AMK-St 38 SSE

Camlock female coupler, hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)

Example of a marking of test data (hydrostatic test) of a hose assembly

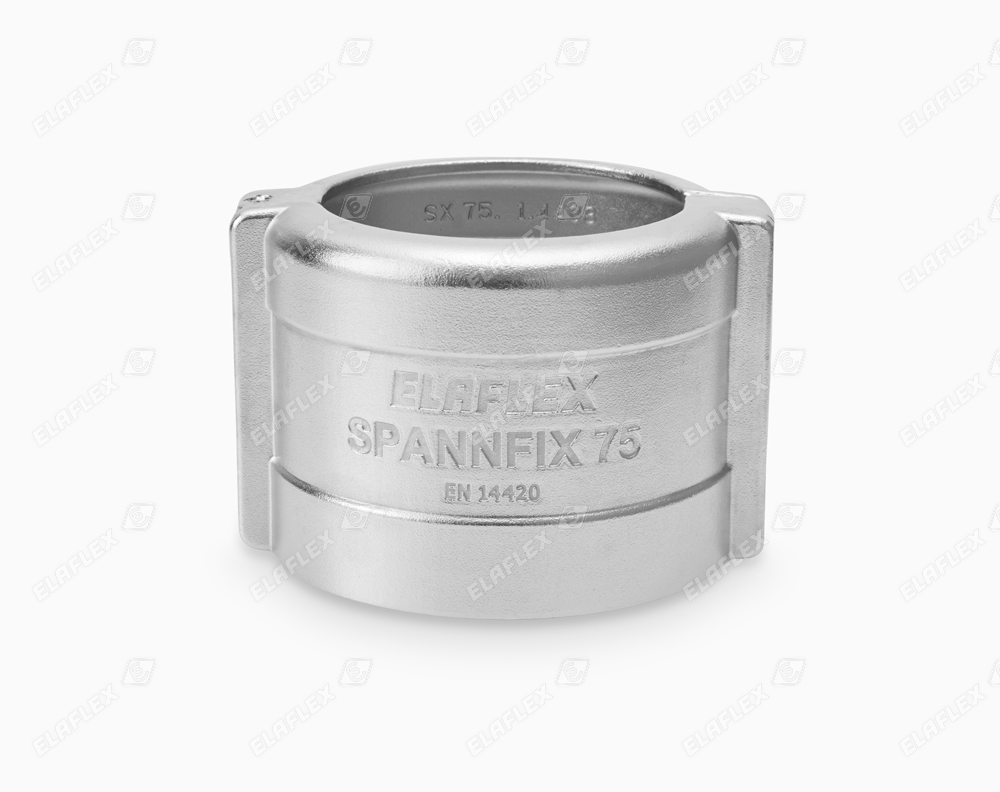

Spannfix safety clamps SX 75 SS of stainless steel

Saturated steam hose fitting SMS 19-3/4" SS/SS

completely of stainless steel, with self-securing bolts and nuts; possibility to attach stainless steel anti-kinking spirals KSS-SD

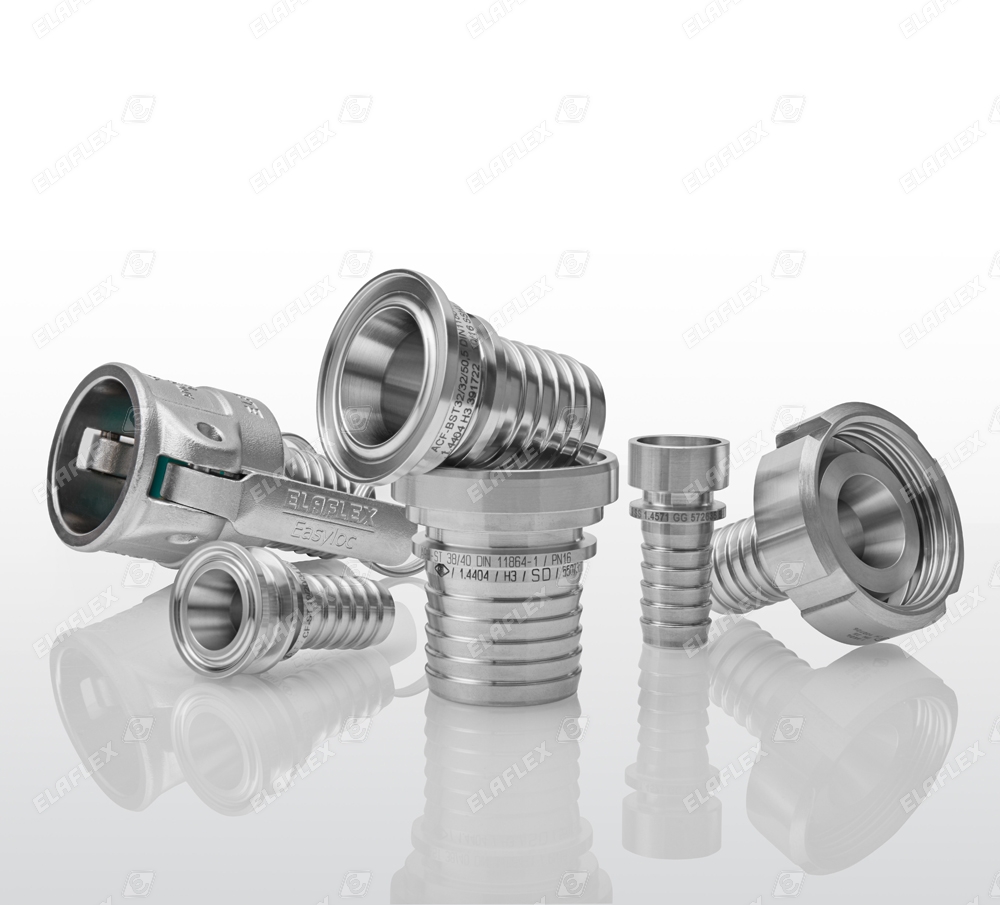

Pharma hose fittings

TW coupler MK 80 SS-90° (bent lever) and dust plug VB 80 ADR SS with pressure relief

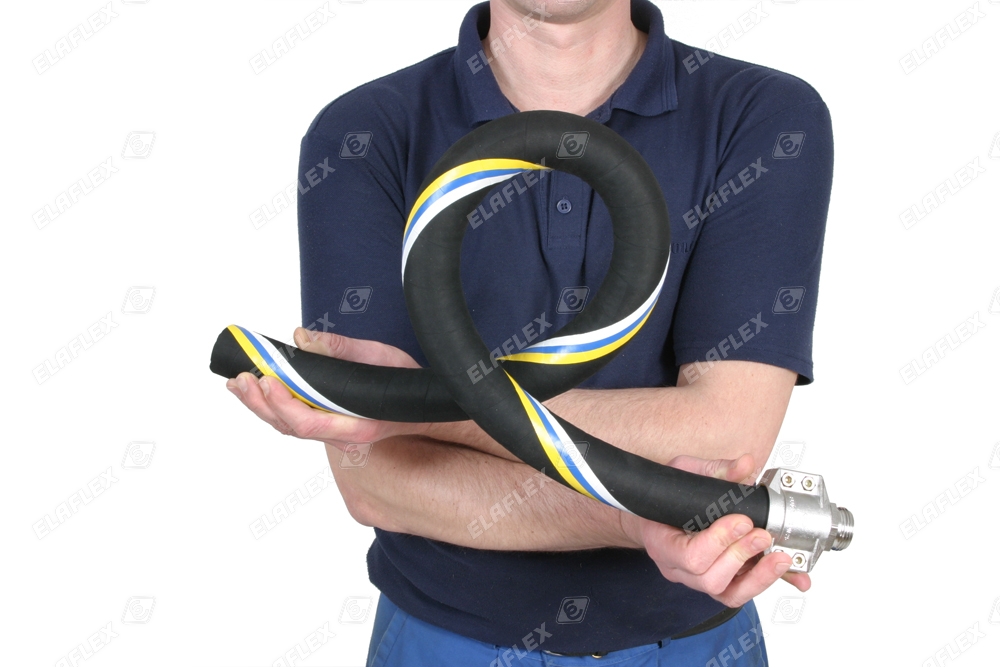

Fluorflex FXD universal hose assembly

extremely flexible PTFE hose with maximum bending radius

MannTek SBC Safety Breakaway Coupling with breaking pins: Detail breaking pins

Pharma hose fittings

Transport protection for flanged fittings

Graphic Drip Stop spout for ZVA Slimline 2 nozzles

EL 800 Earthing Strap with vulcanized copper strand

Electrically conductive bonding. Use for road tankers for petroleum based products, solvents, bulk tankers, forklifts, cable cars and cable Electro-Buses.

Rubber Expansion Joint ERV-CR 80.16

CR Expansion Joints for cold and warm water, swimming pool water, sea water, waste water (weakly sour or alkaline) also oil containing, cooling water with protective oils against corrosion, lubricating oil, grease and air, compressed air. Temperature range (depending on medium) - 25° C up to + 90° C, temporarily up to + 100° C. Electrically non-conductive.

Rubber Expansion Joint ERV-W 80.16

WHITE BAND expansion joints for foodstuffs, also containing oil and fat. Liner corresponds to Recommendation XXI of BfR and FDA-21CFR 177.2600. Not approved for drinking water. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically non-conductive.

Rubber Expansion Joint ERV-R 80.16

RED BAND expansion joints for water, drinking water (approvalDVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature (depending on medium) - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.

Rubber Expansion Joint ERV-OR 80.25

ORANGE BAND expansion joints for Liquid Petroleum Gas (LPG) to EN 589. For tank trucks and refuelling stations. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically dissipative.

Rubber Expansion Joint ERV-GS HNBR 80.16

YELLOW STEEL HNBR expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Very good aging, weathering and ozone resistance. Temperature range (depending on medium) - 35° C up to + 100° C, temporarily up to + 120° C. Fire resistant to ISO 15540 up 30 min. at + 800° C. Electrically dissipative.

Rubber Expansion Joint ERV-GS 80.16

YELLOW STEEL expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Temperature (depending on medium) range - 20° C up to + 90° C, temporarily up to + 100° C. Fire resistant (to ISO 15540) up to 30 min. and 800° C. Electrically dissipative.

Rubber Expansion Joint ERV-GR 80.16

GREEN BAND expansion joints for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.

Rubber Expansion Joint ERV-G LT 80.16

YELLOW BAND LT expansion joints designed for low temperature applications for standard-conform petroleum based products, e.g. diesel, heating oil up to + 90° C, aviation fuels, petroleum up to + 60° C and gasoline up to + 40° C. Temperature (depending on medium) range - 40° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

Rubber Expansion Joint ERV-G 80.16

YELLOW BAND expansion joints suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

Rubber Expansion Joint ERV-BR 80.16

BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR

Rubber Expansion Joint ERP 80.16

RED SPOT expansion joints for sanitary installations, highly flexible, for cold and warm water, pool water, sea water, drinking water. Temperature range (depending on medium) - 40° C up to + 90° C, temporarily up to + 120° C. Electrically dissipative.

Fluorflex FXD universal hose assemblies with anti kinking spiral KSS

extremely flexible PTFE hose with maximum bending radius and safety against kinking

FWS 50 PTFE

Composite hose with PTFE lining
