Hose Reels – Custom-Made, From Our Own Production

'HR' Hose Reel Packages – Overview –

Our bespoke 'HR' Hose Reels are supplied with our hoses, couplings or nozzles. The 'CL' Compact Line as well as 'ML' Modular Line are available with different rewind systems and accessories.

Update: 01.2023

Hose Reels 'Compact Line 25'

  • with automatic spring-loaded rewind system for heavy duty operation,
    used for retraction of Elaflex hoses up to 40 m in max DN 25
  • robust construction and reinforced spring
  • hose connected to wet part fluid pipe
  • commonly used: HD 25 with ZVA 25 or LPG 25 with DGC coupling
    for road tankers
Update: 10.2020

Hose Reels 'Compact Line 50'

  • with automatic spring-loaded rewind system for heavy duty operation,
    used for retraction of Elaflex hoses up to 25 m in max DN 50
  • robust construction and reinforced spring
  • hose connected to wet part fluid pipe
  • commonly used: HD 50 with ZVF 50 for aviation, UTL 50 with DDC
    coupling for AdBlue® or FEP 50 with DDC coupling for chemicals
Update: 10.2020

Hose Reels 'Compact Line T'

  • with automatic springloaded rewind system, used for retraction of
    Elaflex hoses up to 8 m in max. DN 25
  • hose connected to wet part fluid pipe
  • optimal for installation within limited spaces, e.g. mobile refuelling
    equipment or cabinets
Update: 10.2020

Hose Reels 'Compact Line B'

  • with automatic springloaded rewind system, used for retraction of
    Elaflex hoses up to 20 m in max. DN 25
  • small and lightweight designed
  • hose is guided through disk
  • commonly used: Slimline 'SL' 21 with ZVA Slimline 2 for boat refuelling
Update: 10.2020

Hose Reels 'Compact Line VR'

  • equipped with a COAX hose and ZVA Slimline 2 GR nozzle
  • with automatic spring-loaded rewind system
  • usable for Stage II vapour recovery systems
Update: 12.2020

Hose Reels 'Modular Line G and GB 25 / 38'

  • manual or motorised, used for retraction of Elaflex hoses
    up to 40 m in max. DN 38 or 70 m in max. DN 25
  • standard versions supplied with open disks
  • hose connected to wet part fluid pipe
  • commonly used: HD 38 with ZV 400 for ship refuelling
Update: 12.2020

Hose Reels 'Modular Line M'

  • manual or motorised, used for retraction of Elaflex hoses
    up to 50 m in max. DN 25
  • standard versions supplied with closed disks
  • hose connected to wet part fluid pipe
  • commonly used: Slimline 'SL' 25 with ZVA 25, motorised,
    for road tankers
Update: 12.2020

Hose Reels (English)

Custom-made, for terminals and road tankers

Update: 03.2020

Enrouleurs (French)

Fabriqués Sur-Mesure, pour dépots, terminaux et camions-citernes

Update: 06.2020

Avvolgitori (Italian)

Soluzioni standard e personalizzabili per ogni tipo di applicazione

Update: 06.2020

Carretes Para Manguera (Spanish)

Hechos a medida, para Terminales y Camiones Cisterna

Update: 06.2020

Carretes Para Mangueiras (Portuguese)

Feito sob medida, para terminais e caminhões-tanque

Update: 06.2020

Катушки для шлангов (Russian)

Индивидуальные решения Для Терминалов и Автоцистер

Update: 06.2020

Hose Reels Manual

Installation and Operation Information

(English)

Update: 02.2023

 Hose Reels Information and Brochures

HR Information

  • Hose Reels 'Compact Line 25'
  • Hose Reels 'Compact Line 50'
  • Hose Reels 'Compact Line T'
  • Hose Reels 'Compact Line B'
  • Hose Reels 'Compact Line VR'
  • Hose Reels 'Modular Line G and GB 25 / 38'
  • Hose Reels 'Modular Line M'
  • 'HR' Hose Reel Packages

HR Brochures

  • Hose Reels (English)
  • Enrouleurs (French)
  • Avvolgitori (Italian)
  • Carretes Para Manguera (Spanish)
  • Carretes Para Mangueiras (Portuguese)
  • Катушки для шлангов (Russian)

HR Manuals

  • Hose Reels Manual

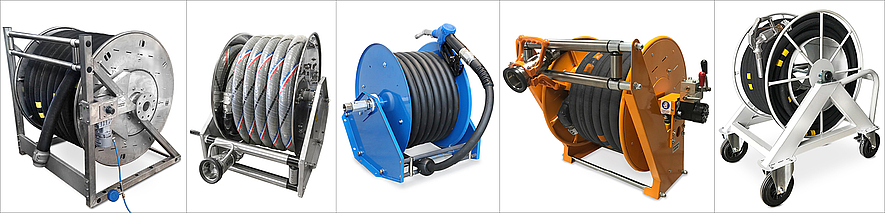

Many Options – Modular Designed to Suit Your Requirements

We have extended our product range with Hose Reels which are custom-made and from our own production. Our Hose Reels are equipped with our hoses, couplings or nozzles, supplied as a complete package.

These packages are commonly used for terminals, road tankers, stationary or mobile refuelling. They are produced to the known high Elaflex quality standard, compliant with CE regulations and meet with European health, safety and environmental standards.

The Hose Reel types are available with different rewind systems: manual – spring – motorised (electric, hydraulic or pneumatic). Suitable for a wide range of media, e.g. gasoline, diesel, aviation fuels, urea solution ( AdBlue®), detergents, solvents, oils, water, gases and others.

They can be built to hold hose sizes from DN 13 to 200 and any length. Depending on the hose configuration and available space, all Hose Reel versions are fully customisable in dimensions, colours, materials and positioning in order to satisfy customer's specific requests.


Advantages

  • high quality standard, longevity
  • many options, modular designed to suit your space, media and requirements
  • delivery as complete, tested, system including hoses, couplings and nozzles
  • economical pricing
  • short lead times

As a complementarity product to the ELAFLEX product range, we have been successfully providing installations in different fields such as stationary or mobile refuelling, bunkering / marine, aviation, LPG, chemicals, defence and fire fighting.

Direct Contact

Hose Reels for the refuelling of vehicles and boats with petrol stations, please contact our EHT sales team.

Hose Reels for terminals, road tankers and other industrial applications such as bunkering, aviation, chemicals etc., please contact the SAT sales team
